SPECIFICATIONS
Material :Aluminum
LED: Citizen/Cree/Philips/Sanan
LED Driver : Philips/Osram/HEP/Lifud
Dimmable : Triac/0-10v/DALI/ RF Dimming
Diffuser: Optical Lens , efficiency≥90%
Adaptor : Three Phases ,One Phase

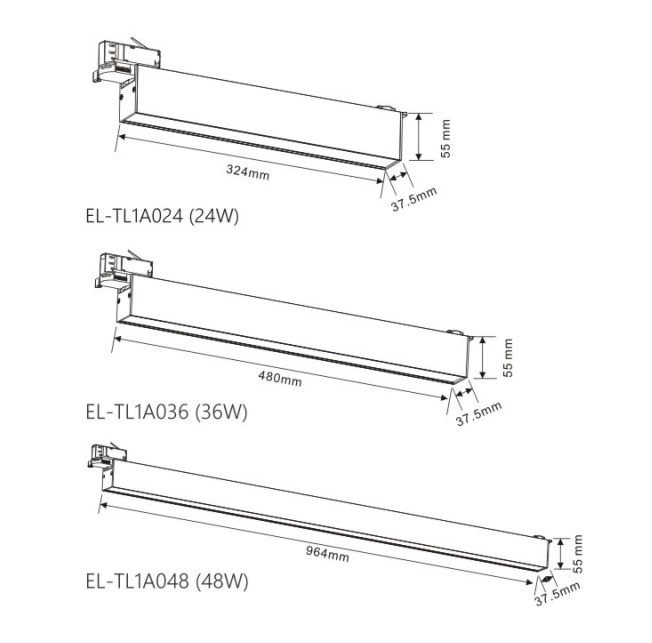

| Model No.: | Power | CRI | CCT | Lumen EEF | Lumen(lm) | Beam Angle | Input voltage | Size(mm) |
| EL-TL1A024 | 24W | ≥80 | 3000k/3500K/4000K | 90lm/w | 2160lm | 100° | 220-240v 50-60Hz | 363*37.5*90 |
EL-TL1A036 | 36W | ≥80 | 3000k/3500K/4000K | 90lm/w | 3240lm | 100° | 220-240v 50-60Hz | 520*37.5*90 |
| EL-TL1A048 | 48W | ≥80 | 3000k/3500K/4000K | 90lm/w | 4320lm | 100° | 220-240v 50-60Hz | 1000*37.5*90 |
Application:
Commercial Area ,Clothing stores, luxury stores, museums, supermarket chains, Hotel ,auto 4S shops, high-end office space, etc.
