SPECIFICATIONS
Material :Aluminum
LED: Citizen/Cree/Philips/Sanan
LED Driver : Philips/Osram/HEP/Lifud
Dimmable : Triac/0-10v/DALI/ RF Dimming
Diffuser: Optical Reflector , efficiency≥90%

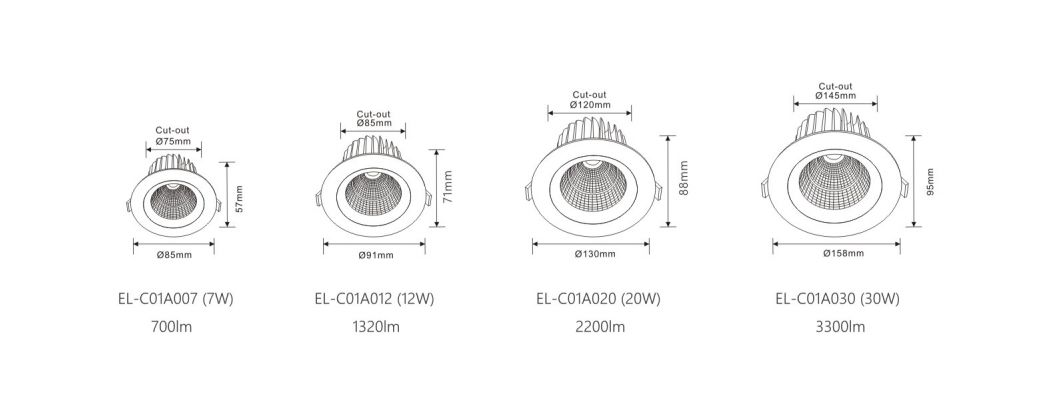

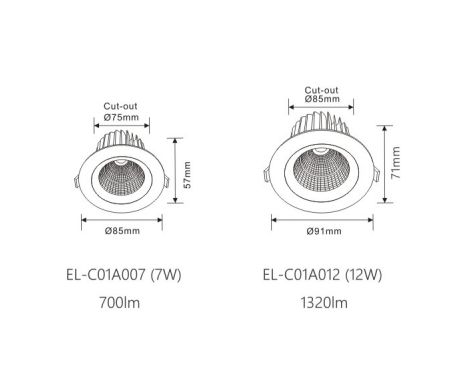

| Model No.: | Power | CRI | CCT | Lumen EEF | Lumen(lm) | Beam Angle | Input voltage | Size(mm) | Cut-out(mm) |
| EL-C01A007 | 7W | ≥80 | 3000k/3500K/4000K | 90lm/w | 630lm | 15° ,24°,36°,60° | 220-240v 50-60Hz | Φ85xH57 | Φ75mm |
| EL-C01A010 | 10W | ≥80 | 3000k/3500K/4000K | 90lm/w | 900lm | 15° ,24°,36°,60° | 220-240v 50-60Hz | Φ91xH71 | Φ85mm |
| EL-C01A020 | 20W | ≥80 | 3000k/3500K/4000K | 90lm/w | 1800lm | 15° ,24°,36°,60° | 220-240v 50-60Hz | Φ130xH88 | Φ120mm |
| EL-C01A030 | 30W | ≥80 | 3000k/3500K/4000K | 90lm/w | 2700lm | 15° ,24°,36°,60° | 220-240v 50-60Hz | Φ158xH95 | Φ145mm |
Application:
Commercial Area ,Clothing stores, luxury stores, museums, supermarket chains, Hotel ,auto 4S shops, high-end office space, etc.
