SPECIFICATIONS
Material :Aluminum
LED: Citizen/Cree/Philips/Sanan
LED Driver : Philips/Osram/HEP/Lifud
Dimmable : Triac/0-10v/DALI/ RF Dimming
Diffuser: Optical Reflector , efficiency≥90%
Adaptor : Three Phases ,One Phase

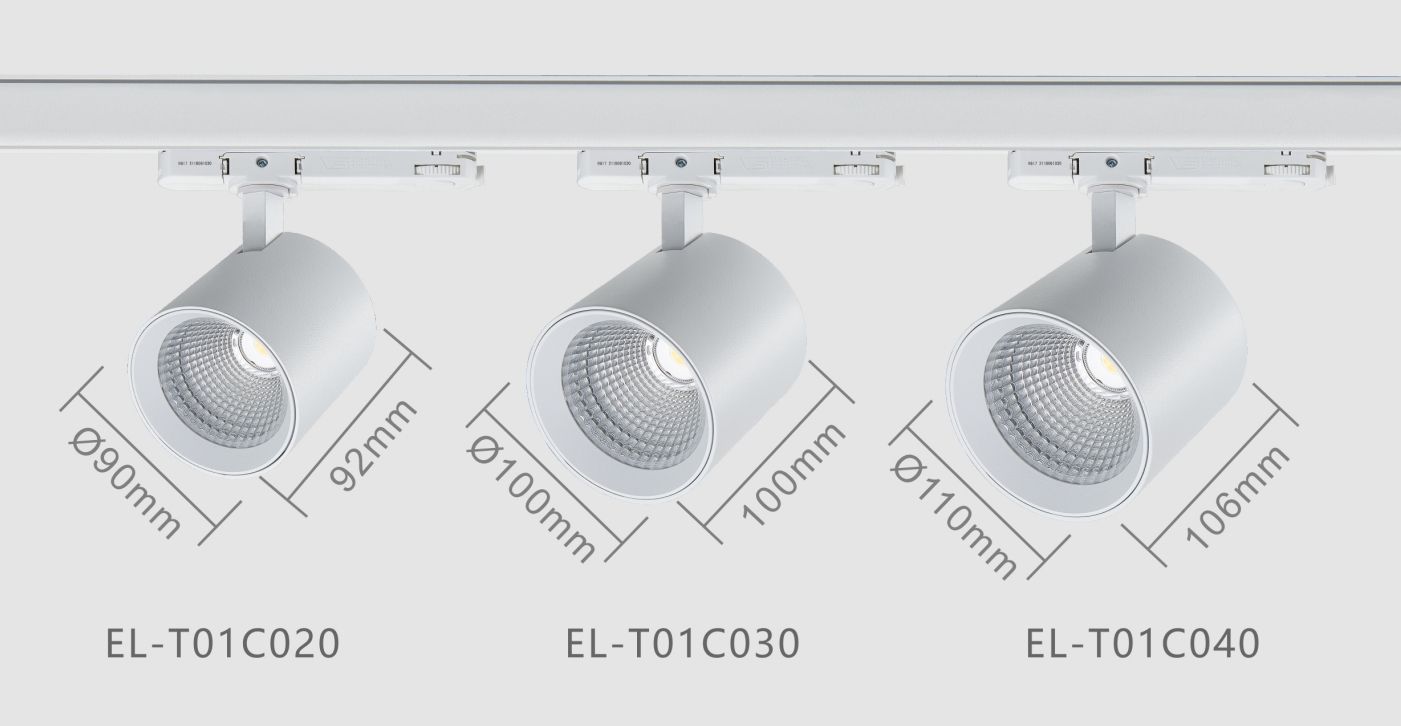

| Model No.: | Power | CRI | CCT | Lumen EEF | Lumen(lm) | Beam Angle | Input voltage | Pc s/CTN | |
| EL-T01C020 | 20W | ≥80 | 3000k | 90lm/w | 1800lm | 15° | 220-240v 50-60Hz | 10 | |
| EL-T01C030 | 30W | ≥80 | 3500k | 90lm/w | 2700lm | 24° | 220-240v 50-60Hz | 10 | |
| EL-T01C040 | 40W | ≥80 | 4000k | 90lm/w | 3600lm | 38° | 220-240v 50-60Hz | 10 | |
| 45° | |||||||||
| 60° |
Application:
Commercial Area ,Clothing stores, luxury stores, museums, supermarket chains, Hotel ,auto 4S shops, high-end office space, etc.
